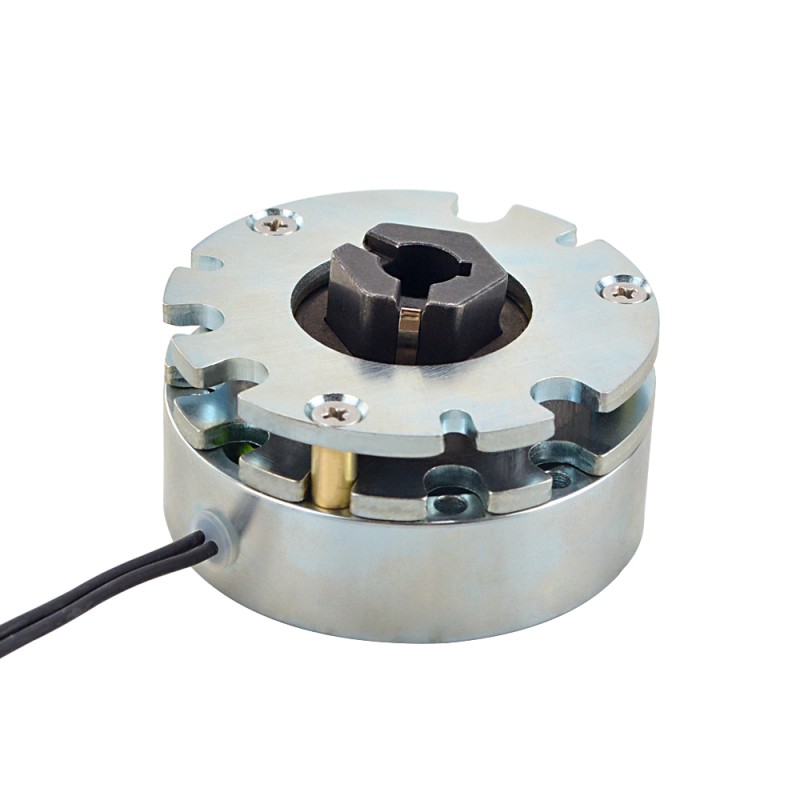

Used - Stock in US - DC Electromagnetic Brake 24V 4.0Nm(566oz.in) for Nema 34 Stepper Motor

DC Electromagnetic Brake 24V 4.0Nm(566oz.in) for Nema 34 Stepper Motor - SWB-05 | StepperOnline AU
SWB-05-USED
Brake Power(W)13
Brake Torque(Ncm)400
Brake Torque(oz.in)566.4
Question

Downloads

SWB-05.STEPSTEP · 1.29MBLog in to downloadSWB-05_Full_Datasheet.pdfPDF · 257.5KB
Same series
ModelBrake Power(W)Brake Torque(Ncm)Brake Torque(oz.in)PriceStock
SWB-0031.468.5A$74.59In stock
SWB-0046.13245.32A$79.57Backorder
SWB-0152535.4A$50.45In stock
SWB-01-USED52535.4A$28.61In stock
SWB-0311.5200283.2A$52.27In stock
SWB-0513400566.4A$62.26In stock
SWB-05-USED13400566.4A$53.81In stock
Used - Stock in US - DC Electromagnetic Brake 24V 4.0Nm(566oz.in) for Nema 34 Stepper Motor
This brake is Non-excited brake and operate with 24VDC, it can create Max 4Nm(566.4oz.in) static fri... Read More
0 reviews • Write a review
from Save -16%
A$53.81
A$64.03

Click country for live inventory

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Australian customers: choose the Australia warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This brake is Non-excited brake and operate with 24VDC, it can create Max 4Nm(566.4oz.in) static friction torque. It's a good choice for Nema 34 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque : 4Nm(566.4oz.in)
  • Moment of Interia : 23x10-6 kg.cm2
  • Voltage : 24V
  • Power: 13W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.8kg
Brake Specification
Brake Power(W) 13
Brake Rated Voltage(V) 24
Brake Torque(Ncm) 400
Brake Torque(oz.in) 566.4

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

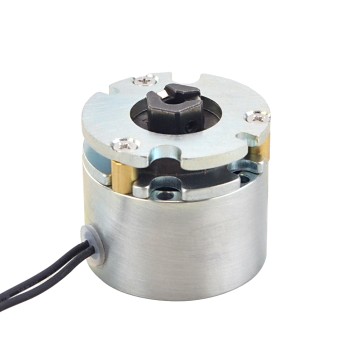

DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor
DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor
This brake is Non-excited brake and operate with 24VDC, it can create Max 0.25Nm(35.4oz.in) static friction torque. It's a good choice for Nema 17 siz..
from
A$50.45
Add to Cart
Add to Wish List Compare this Product
Quickview

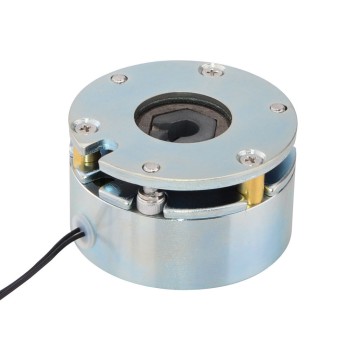

DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor
DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor
This brake is Non-excited brake and operate with 24VDC, it can create Max 2Nm(283.2oz.in) static friction torque. It's a good choice for Nema 23 and N..
from
A$52.27
Add to Cart
Add to Wish List Compare this Product
Quickview

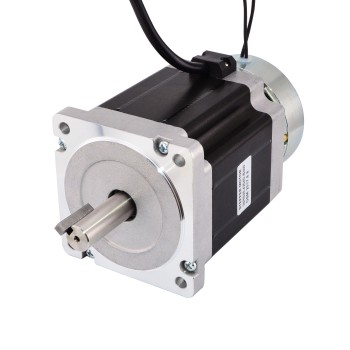

Nema 34 Stepper 7.0Nm(1001oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Pre-order
Nema 34 Stepper 7.0Nm(1001oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Motor Specification Manufacturer Part Number: 34HS38-4204D-B400 Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 7Nm(1001oz.in) ..
from
A$145.44
Add to Cart
Add to Wish List Compare this Product
Quickview

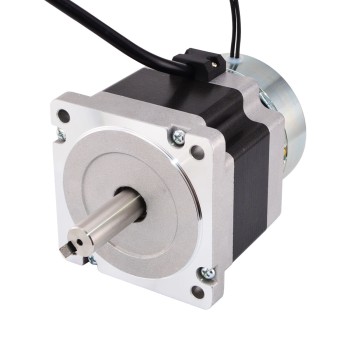

Nema 34 Stepper 3.4Nm(481.5oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Pre-order
Nema 34 Stepper 3.4Nm(481.5oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Motor Specification Manufacturer Part Number: 34HS27-4004D-B400 Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 3.4Nm(481oz.in) ..
from
A$122.70
Add to Cart
Add to Wish List Compare this Product
Quickview

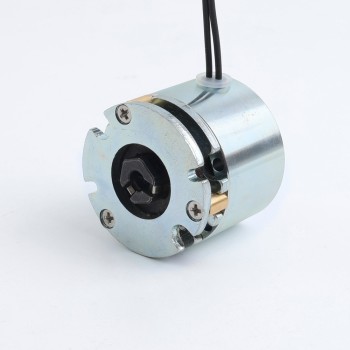

Used - China Stock - DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor
